R2329456015 | R2329457015

Carbon wheel ALLURE CARBON FIT24" (540) clincher

Compatible with an extensive range of handrims, ALLURE CARBON FIT wheels can be tailored to your handling and ergonomic needs enhancing everyday mobility. Proudly made in France, the ALLURE CARBON FIT wheels redefine comfort and performance for those who value the best, every day.

Rear

Data

  • 24" / ETRTO 24" (540) clincher
  • Rim width : 26mm
  • Weight : 1440 g (Pair)
  • Carbon weave : 3K
  • Push rim : Compatible with 6 tab mount standard*
  • Axle diameter : 1/2‘’ – 12,7mm
  • Axle length** : 53.8mm
  • Axle head: axle length 20.2mm – axle diameter 29.6mm

* Shipped without handrim

** Axle not included

Handrim mounting tutorial

Shipped with

  • Rim tape
  • Schrader valve extension
  • 6 screw covers + screws

User's manual

Refer to the table below for the tire pressures in relation to the section marked on the tyre.

Tire section
mm		 max. pressure
(bar)		 max. pressure
(psi)
23 7,8 113
24 7,5 109
25 7,3 106
26 7,0 102
27 6,8 99
28 6,6 95
29 6,3 92
31 6,1 88
31 5,8 85
32 5,6 81

Do not remove the tire with any metal tool.

The minimum tire section is 23 mm and the maximum 32 mm.

For comfort and performance we recommend fitting 23 mm section tires on our 22.6 mm wide rims and 25 mm section tires on our 26 mm wide rims.

The original CORIMA braided rim tape is mandatory. If it is damaged it must be the replaced.

CORIMA clincher wheels are not compatible with tubeless conversion kits.

Only tires with inner tubes are acceptable (except latex inner tubes).

Co2 cartridge inflation systems are only allowed if their flow rate is adjustable. Instant inflation cartridges are prohibited with CORIMA wheels.

If the tire manufacturer indicates a pressure lower than that in the table, use this lower value.

FAQ

A unique design

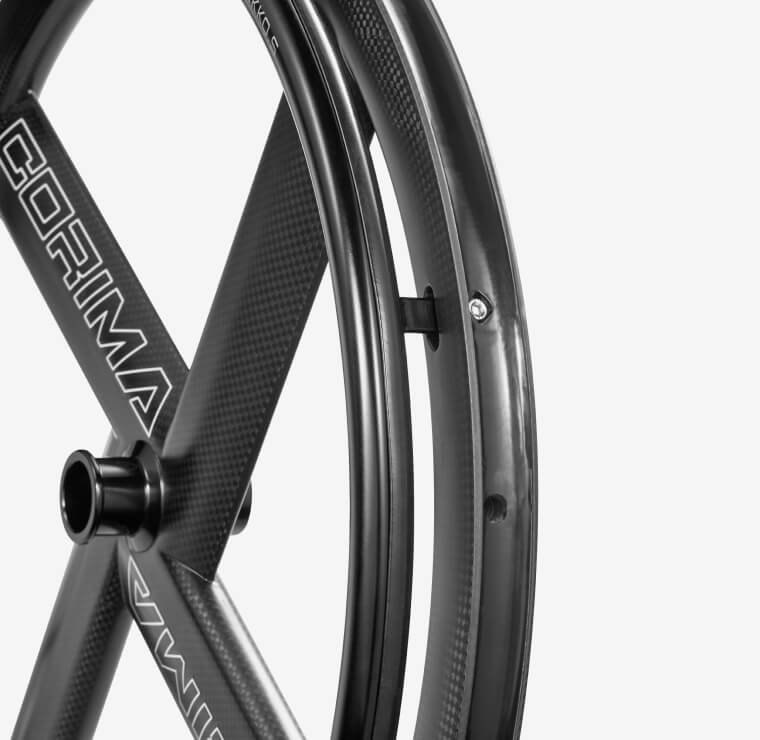

Echoing the aesthetics and performance of CORIMA's racing wheels, the 4-spoke design of the ALLURE CARBON FIT is distinctive, guaranteed to make an impression wherever you go. Not just elegant and eye-catching, the carbon spokes bring responsiveness, efficiency and durability to these wheels thanks to our expertise in aerodynamics and performance. This unique design is further enhanced by streamlined graphics that add a touch of style to your everyday activities.

Simply add your favourite handrim

Developed to meet the needs of different users, ALLURE CARBON FIT wheels are compatible with an extensive range of handrims thanks to their standard 6-tab mount. This straightforward system gives you the freedom to customize your grip and ensure the steering and propulsion of your wheelchair perfectly reflects your requirements. No matter how long your trip, or how hectic your schedule, this flexibility ensures you enjoy maximum comfort, performance and total control wherever the day takes you.

Exceptional efficiency and manoeuvrability

The design of our ALLURE CARBON FIT wheels is based on concepts drawn from the aeronautical industry. Incorporating a leading edge and a trailing edge, they bring responsiveness and efficiency to your every move. The use of premium carbon fibers ensures ultimate manoeuvrability enabling you to meet your daily challenges, while our top-of-the-range hubs deliver smooth comfort wherever you go. Weighing in at just 770 grams per wheel (excluding handrim), these lightweight wheels will protect your shoulders and arms on the most demanding trips. Tried and tested by our parasport athletes, the ALLURE CARBON FIT are sure to keep up with the most active lifestyles.
